Specifications

  • Operates in both vertical and horizontal position.
  • Factory set at 50 psi adjustable to 100 psi
  • 2 gallon reservoir
  • 115 or 230 VAC / 1 ph-50 / 60 Hz
  • 5.6 / 2.8 amp:60 Hz
  • 12,000 BTU
  • Dimensions: 9″L x 9″W x 26″H
  • 1/4″ FPT (water in / out) with 5/8″ LH Standard Inert Gas Fitting
  • 8 foot power cord
  • Rugged polyethylene non-dent construction
  • Visible water level through tank
  • Thermal overload
  • Net weight: 33 lbs / 15 kg
  • Foam packed for UPS shipment

VH1000G: Rotary GEAR Pump

  • 1.8 gpm at 50 psi
  • Built in by-pass to tank

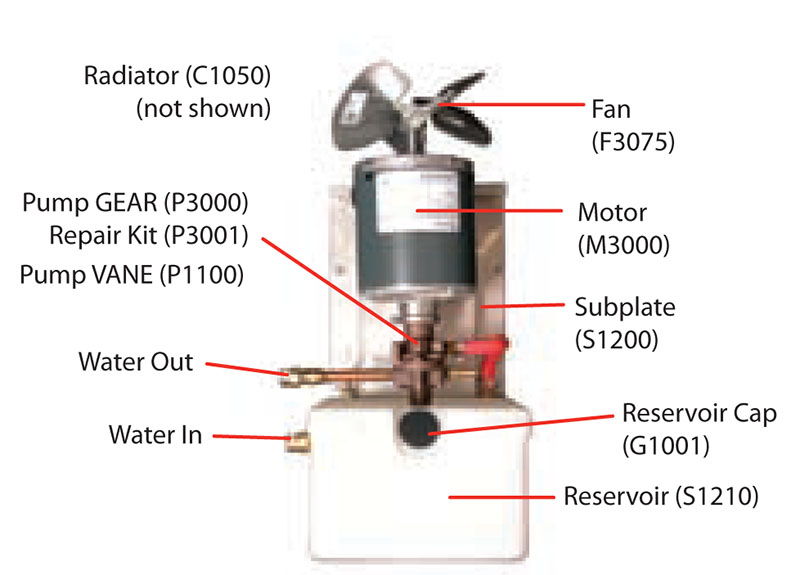

  • Rebuildable Pump {Repair Kit Product No. P3001)

VH1000V: Rotary VANE Pump
1.7 gpm at 50 psi

System Features

  • Plastic construction contributes to quiet operation of unit.
  • The VH1000 operates in a vertical position for welding carts or space savings, or in a horizontal position for conventional applications.
  • Dynaflux continues to incorporate the latest available technology to develop a more economical, efficient, versatile and compact water cooler. The high strength seamless plastic design provides greater impact and compression strength, rust and dent resistance, weight reduction and greater aesthetics.
  • The extended life pump features a direct drive power system reducing maintenance and increasing performance.
